10kwh Lithium Solar Battery 48v 200ah Solar Panel Home Energy Storage Powerwall Battery

Product Details48V 200AH Home Storage BatteryThe product utilizes Top grade A cell, designed to las
SendInquiry
NoDownload
ProductDetails

ProductIntroduction

Product Details

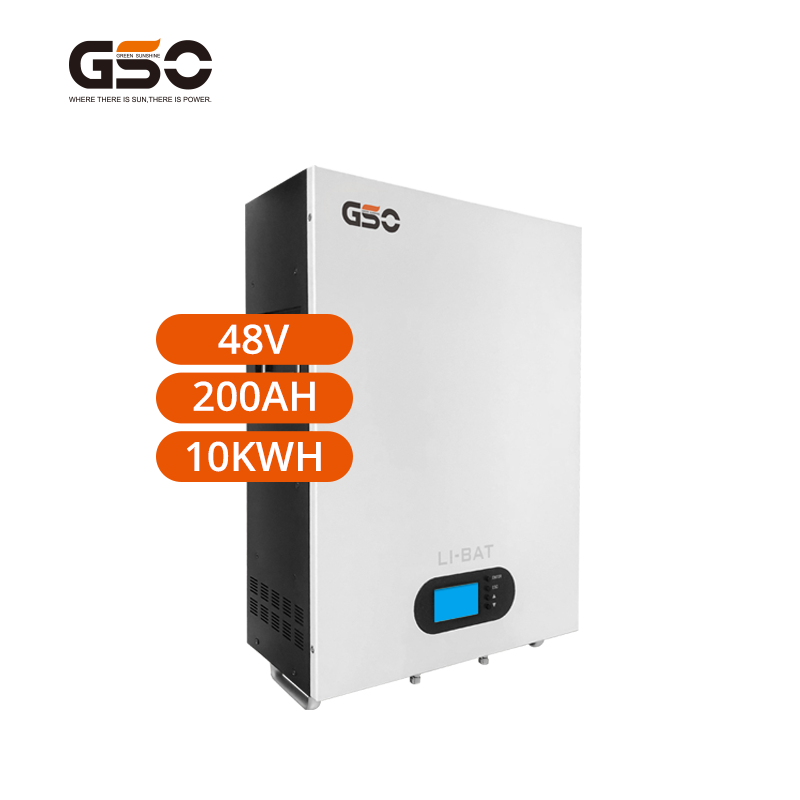

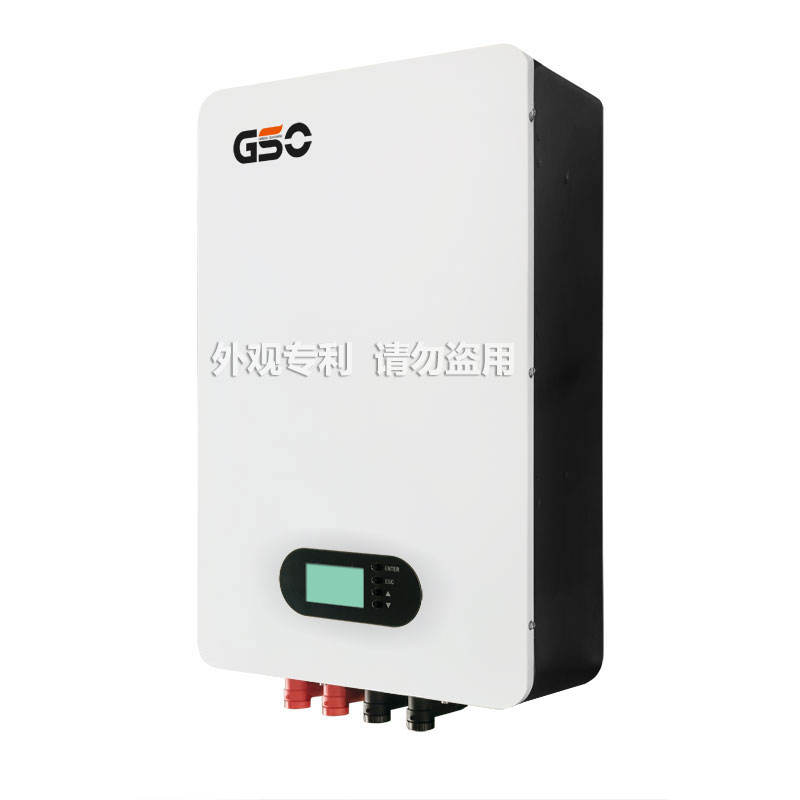

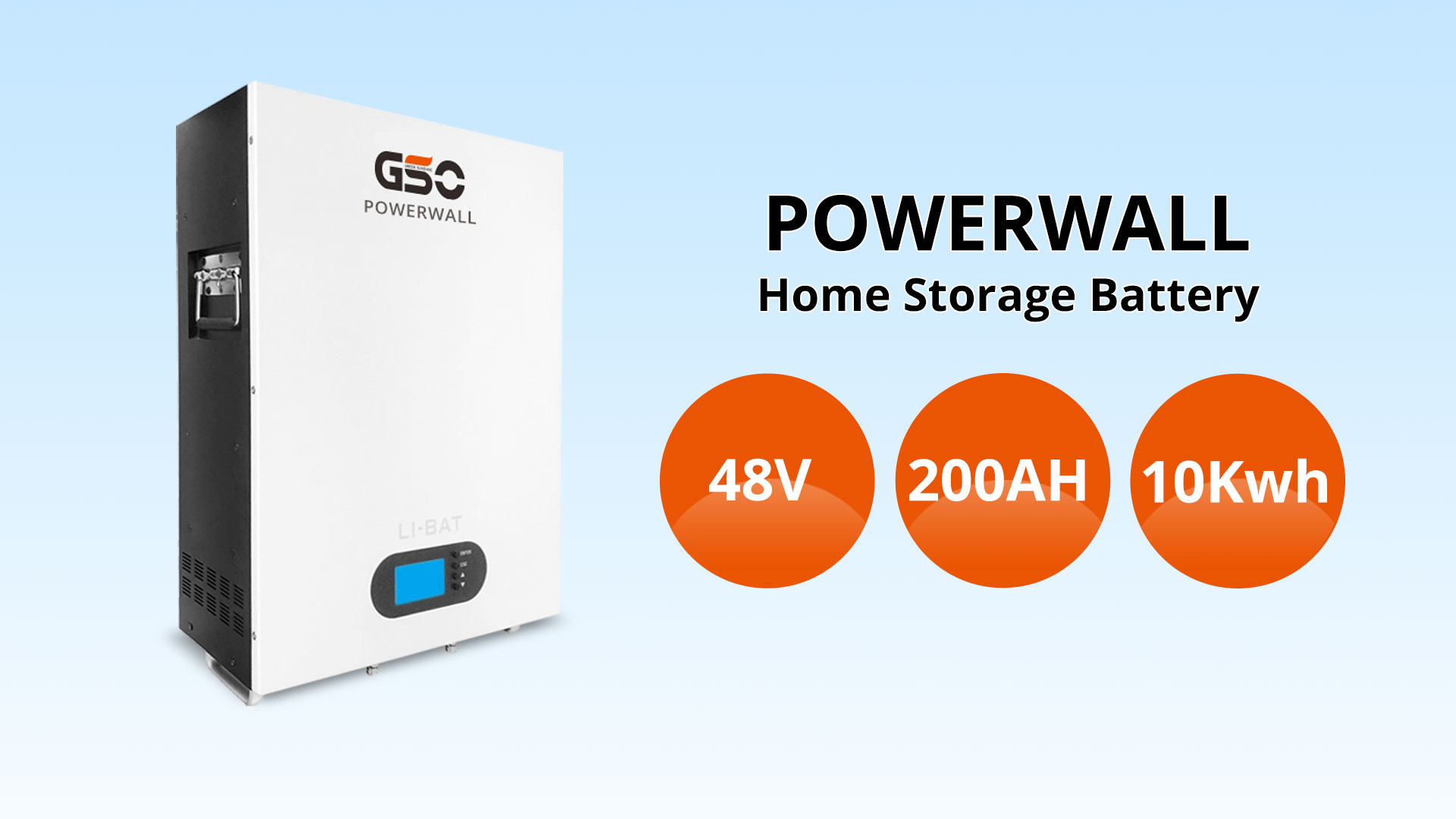

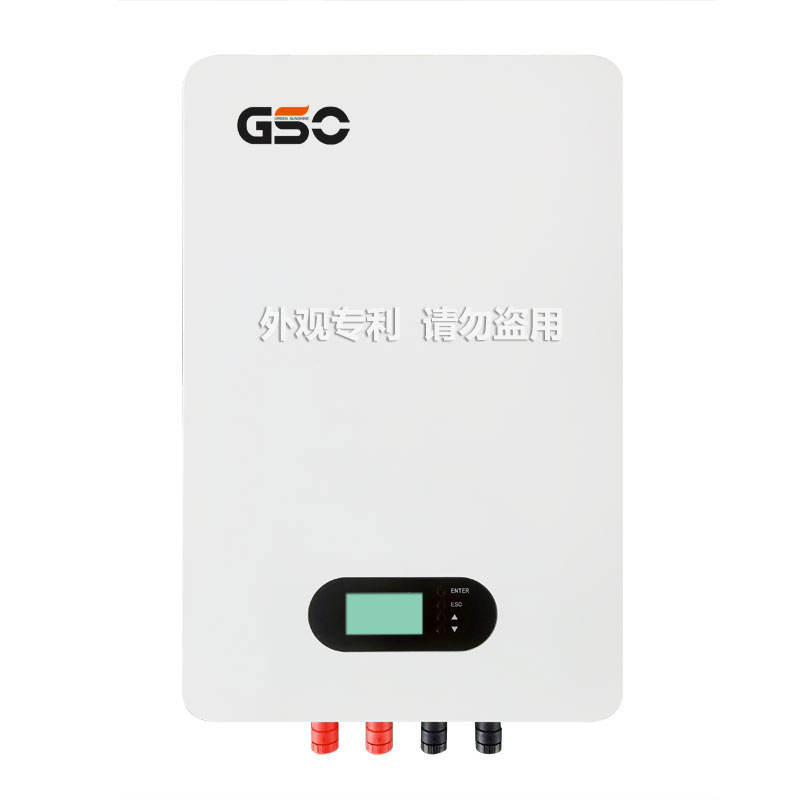

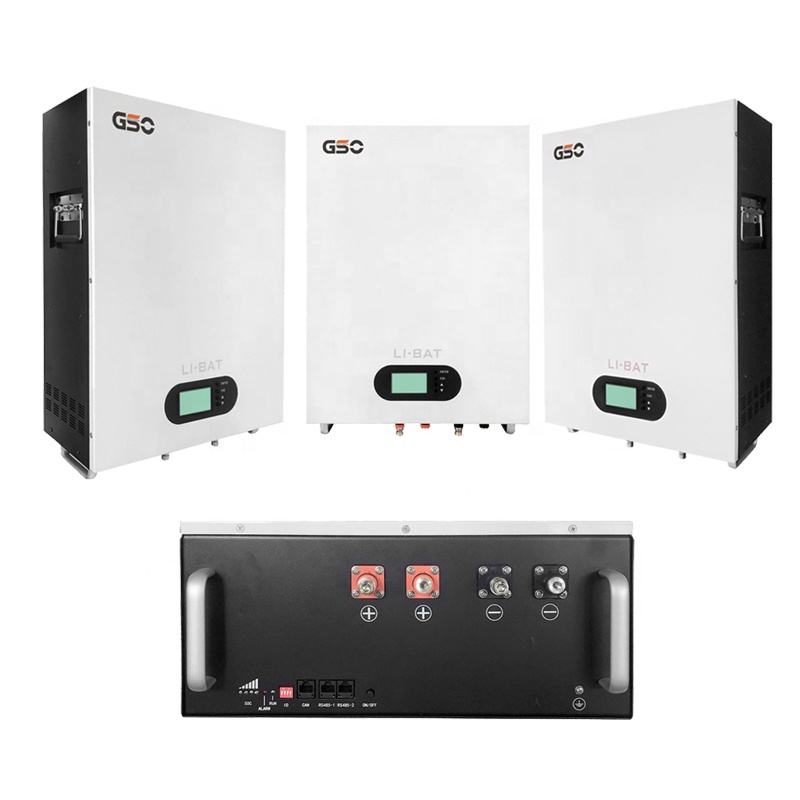

48V 200AH Home Storage Battery

The product utilizes Top grade A cell, designed to last over 10 years;

Easy maintenance and operation;

Functions:1.Over-temperature alarm protection

                  2.Over-charge and over-discharge protection

3.Short-circuit protection

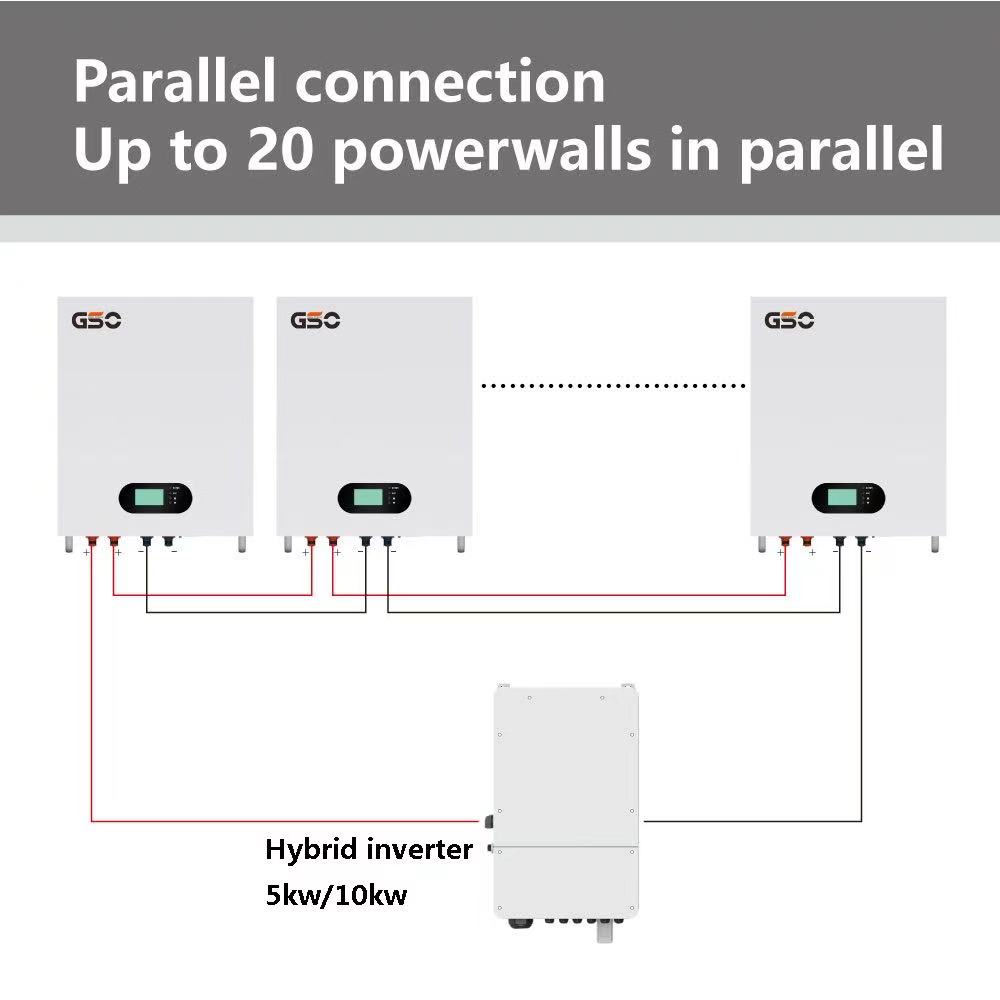

4.Seamless connection with UPS, photovoltaic power generation and other mainequipment




Wide Compatibility




GSO is proud to announce that our modules can Cooperate with most inverters on the market.

More brands are coming soon...

Model

GBP-L2

Nominal Voltage (V)

48V

Battery Capacity (AH)

200AH

Output Power Range

10 kWh

Dimension (L*W*H)

465*682*246(mm)

Weight

88kg

Communication Port

CAN, RS485,Can be customizable

Protection Class

IP20

Nominal Voltage

48V

Nominal capacity

210AH

Operating voltage range

42-55(V)

Standard discharge current

40A

Maximum discharge current

100A

Applicable temperature

-30℃~60℃(Recommended 10℃~35℃)

Allowable humidity range

0~85% RH

Storage temperature

-20℃~65℃(Recommended10℃~35℃)

Cooling method

natural air cooling

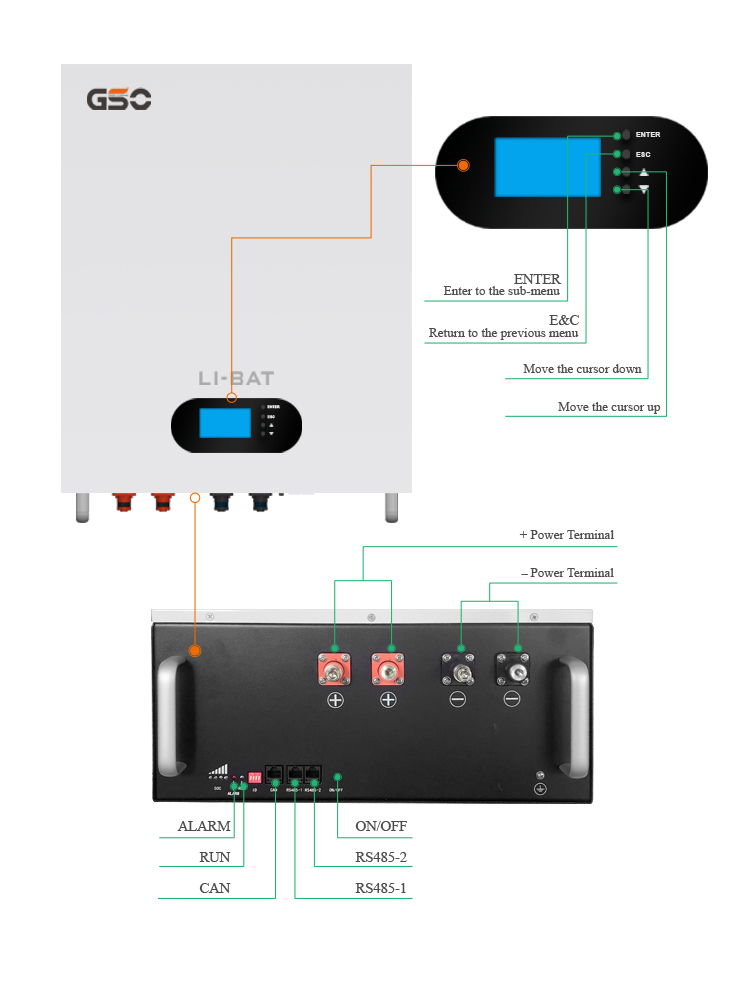

Battery Function


1.One-key switch machine, front wiring.

2.At a glance, you can see the state of the battery

3.Communication interface with two RS485 and one CAN,can be customizable.


Inside The Battery

1.Top garde A cell

2.Standard cycle life is more than 6000 times

3.Metals, green and environmentally friendly

4.Designed to last over 10 years

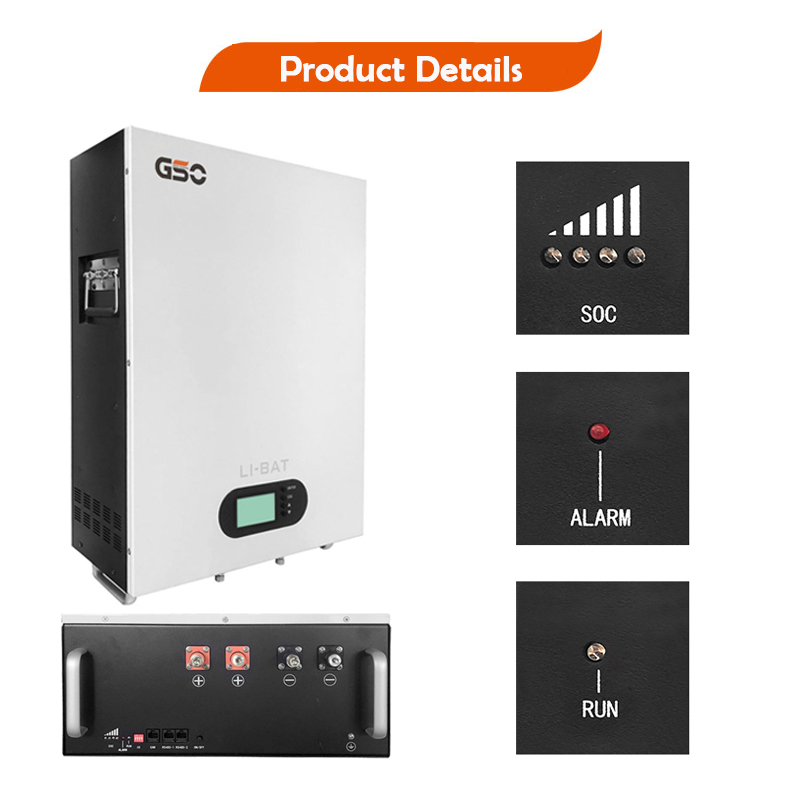

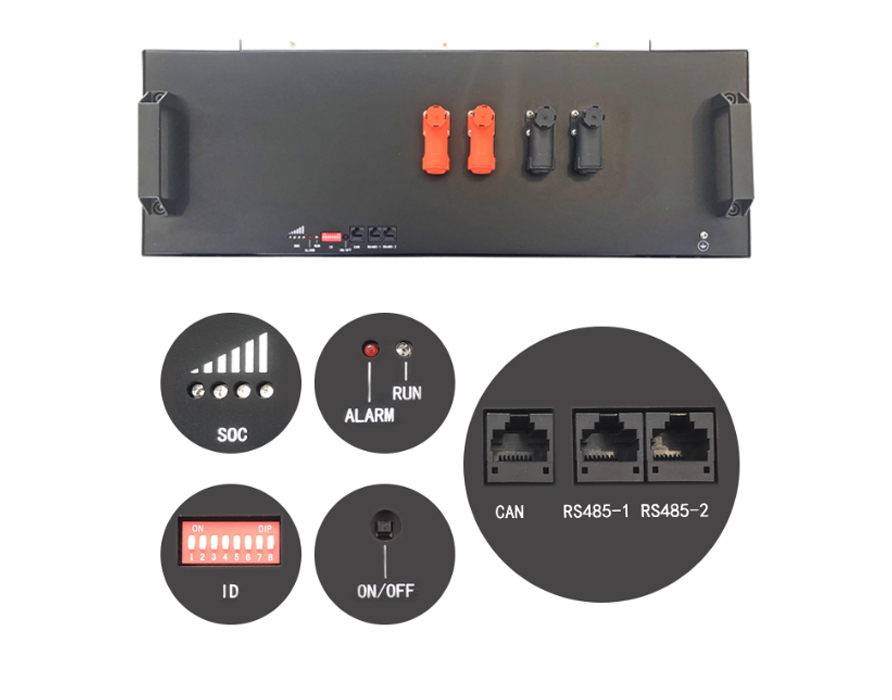

Battery Details


1.CAN/RS485 etc. can be customized according to customer requirements

2.Standard configuration with LCD display, real time knowing battery status

3.Remote viewing of errors and online software upgrades

Project cases
