Summary of steam vortex flowmeter products

Steam vortex flowmeter (also known as vortex street flowmeter) is mainly used for measuring the flow of industrial pipeline media fluid, such as gases, liquids, vapors and other media. It is characterized by low pressure loss, wide range and high accuracy. It is almost not affected by parameters such as fluid density, pressure, temperature, viscosity and so on. There are no movable parts, so the reliability is high and the maintenance quantity is small. Instrument parameters can be stable for a long time. The vortex flowmeter adopts piezoelectric stress sensor, which has high reliability and can work in the working temperature range of -20 to +250 C. It has analog standard signal and digital pulse signal output. It is easy to match with computer and other digital systems. It is an advanced and ideal flow meter.


Two. Product principle of steam vortex flowmeter

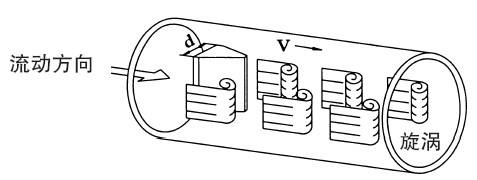

In the fluid, a triangular columnar vortex generator is generated, and a regular vortex is generated alternately from both sides of the vortex generator. The vortex is called Carmen vortex. As shown in the right picture, the vortex is arranged asymmetrically in the downstream of the vortex generator 1.


Three. Flow table of steam vortex flowmeter

Table 1, liquid and gas (unit: m) Three /h)

Path

(DN)

Liquid flow range

(M Three /h)

Output frequency range

(Hz)

Gas flow range

(M Three /h)

Output frequency range

(Hz)

Fifteen

1.2 to 6.2

90~900

5~25

265~2640

Twenty

1.5 to 10

40~396

8~50

218~1982

Twenty-five

1.6 to 16

32~325

10~70

172~1420

Thirty-two

2~20

20~250

15~150

130~1350

Forty

2.5 to 25

13~130

22~220

115~1147

Fifty

3.5 to 35

9~93

36~320

96~854

Sixty-five

6~60

8~82

50~480

61~583

Eighty

10~100

6~65

70~640

45~417

One hundred

15~150

5~50

130~1100

43~367

One hundred and twenty-five

25~250

5~47

200~1700

33~290

One hundred and fifty

40~400

4~40

280~2240

27~221

Two hundred

80~800

3~33

580~4960

24~207

Two hundred and fifty

140~1400

3~26

970~8000

20~171

Three hundred

200~2000

2~22

1380~11000

17~136

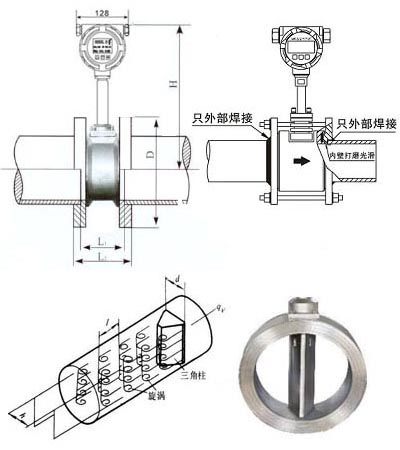

Four. Outline size drawing

Path

(DN)

L

(mm)

H

(mm)



Ten

Sixty-six

Three hundred and sixty

Fifteen

Sixty-six

Three hundred and sixty

Twenty

Sixty-six

Three hundred and sixty

Twenty-five

Sixty-six

Three hundred and sixty

Thirty-two

Sixty-six

Three hundred and sixty-five

Forty

Eighty

Three hundred and seventy

Fifty

Eighty

Three hundred and seventy-five

Sixty-five

Ninety-three

Three hundred and eighty-three

Eighty

One hundred

Three hundred and ninety

One hundred

One hundred and twenty-five

Four hundred

One hundred and twenty-five

One hundred and forty-five

Four hundred and seventy

One hundred and fifty

One hundred and sixty-five

Five hundred

Two hundred

One hundred and ninety-six

Five hundred and eighty

Two hundred and fifty

Two hundred and thirty-five

Six hundred and fifty

Three hundred

Two hundred and fifty-five

Seven hundred

Five, installation sketch map

Matters needing attention

Legend

1. installation of expansion pipe

For small diameter and large flow, it is necessary to expand the pipe and ensure that the front straight section of the flowmeter is more than 15D, and the straight pipe section is more than 5D.



2. installation of shrinkage tube

For large diameter and small flow, it is necessary to install the shrink tube while ensuring that the front straight section of the flowmeter is more than 15D, and the straight pipe section is more than 5D.



3. installation of elbow pipe

If the front end of the flowmeter has a 90 degree elbow or a T type joint, ensure that the straight straight section of the flowmeter is equal to or equal to 15D, and the straight pipe section is equal to or equal to 5D.



4. installation of two bends on the same plane.

If the front end of the flowmeter has two 90 degree elbows, ensure that the front straight section of the flowmeter is more than 20D, and the straight pipe section is more than 5D.



5. installation of two curved pipes in different planes

If the front end of the flowmeter has two 90 degree elbows, ensure that the front straight section of the flowmeter is more than 25D, and the straight pipe section is more than 5D.



6. installation of regulating valve

If the regulator is needed before and after the flowmeter, ensure that the front straight section of the flowmeter is more than 25D, and the straight pipe section is more than 5D.

L six, product selection form

ZM-LUGB

Steam vortex flowmeter

caliber

(mm)

Ten

DN10~DN50 (flange type, clamp type, threaded type, pair clip type)

Fifty

DN50~DN150 (pair clamp, flange type)

One hundred

DN100~DN300 (flange type, pair clip type)

Three hundred

DN300 above is inserted.

Installation mode

B

Pair clamp

L

Flange connection type

C

Insertion type

Compensation mode

nothing

No compensation

BC

Temperature and pressure compensation

W

Single temperature compensation

Y

Single pressure compensation

Measuring medium

Y

liquid

Q

Gas

Z

steam

temperature range

T1

Normal temperature (below 120 C)

T2

High temperature type (below 250 C)

Pressure grade

P1

Atmospheric pressure to 1.6MPa

P2

2.5MPa

P3

4.0MPa

Material of Ontology

A

carbon steel

B

304 stainless steel

C

316 stainless steel

Power supply mode

D

Two wire DC24V 4 to 20mA

H

Two wire DC24V 4 to 20mA+HART protocol

C

Battery powered

Additional options

R

RS485 MODBUS protocol

M

Pulse output

B

Explosion protection (ExII CT6)
